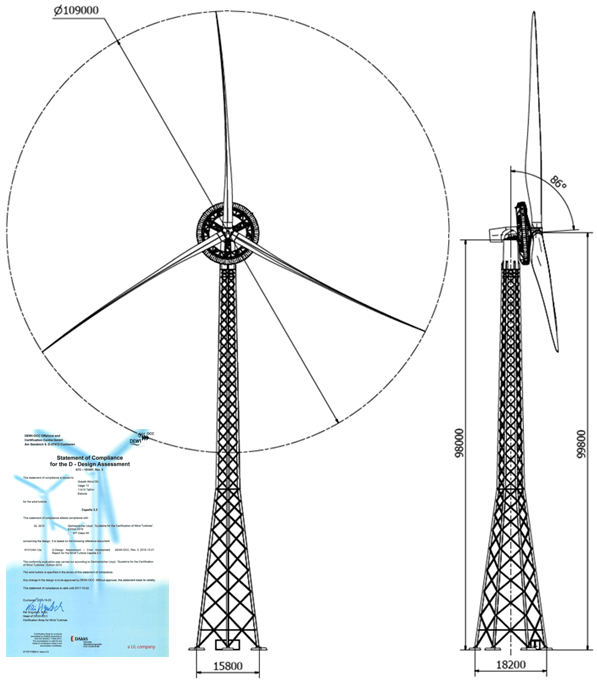

Capella™ 3 – 109
Turbine Data
| Rotor Diameter | Ø109 m |

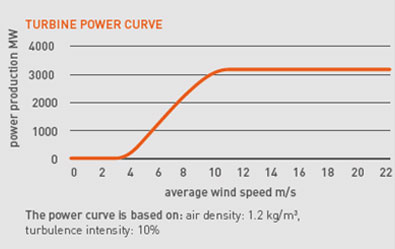

| Rated Power output | 3200 kW |
| Wind Class | IEC Class IIA |
| Rated Wind Speed | 11,5 m/s |
| Speed at rated power | 13.8 rpm |
| Tip speed at rated power | 78,8 m/s |
| Rated Generator Efficiency | 94% |
| Hub Heights | 80, 100 & 120m |
Capella™ 3 – 120
Turbine Data
| Rotor Diameter | Ø120 m |
| Rated Power output | 2750 kW |
| Wind Class | IEC Class IIIA |
| Rated Wind Speed | 11,5 m/s |
| Speed at rated power | 12.7 rpm |
| Tip speed at rated power | 78,8 m/s |
| Rated Generator Efficiency | 94% |
| Hub Heights | 80, 100 & 120m |
Cyclos™ Generator
Cyclos™3 – Generator

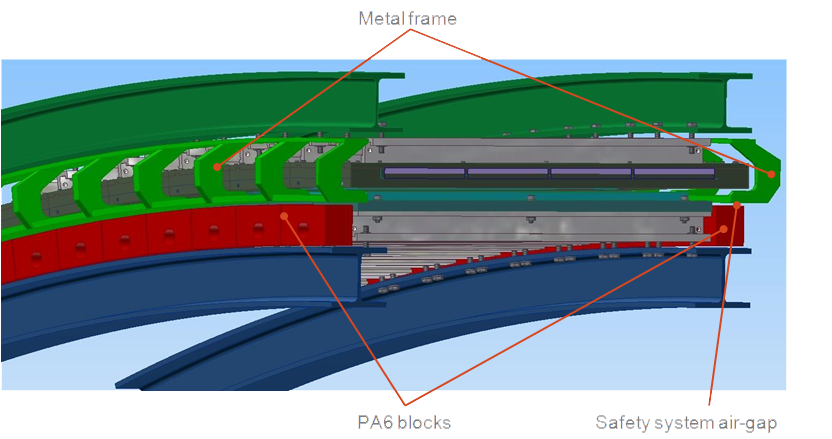

Cyclos™3 – Safety System
Cyclos™3 – Main Bearing Assembly
Cyclos™3 – Load Carrying Parts

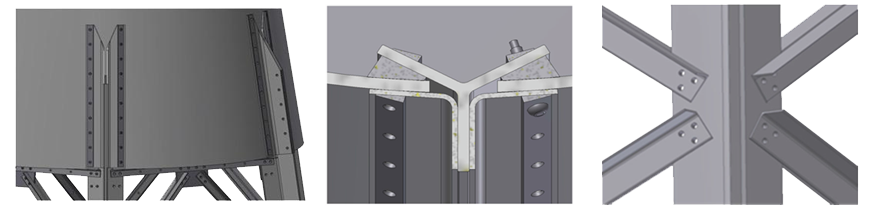

Cyclos™3 – Goliath Advanced Lattice Tower
Standard pre-cut profiles – easy on site assembly – simple foundation – standard transport – Maintenance Free Bolts
3 hub heights available: 80, 100 and 120m
Cyclos™3 – Tower Base
- ½ of volume of concrete compared to a tubular tower.
- 1/3 of mass of structural steel compared to a tubular tower.
- Cost Efficient preparation of site for foundation.
- Reduced preparation time and casting time.
- Option for pre-fabrication

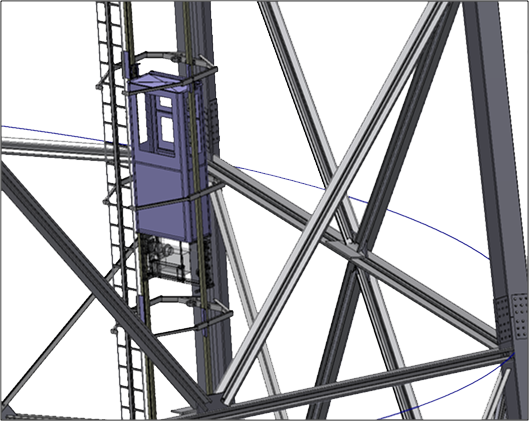

Cyclos™3 – Rack & Pinion Drive Service Lift
Optional Service lift with:
- Rack and Pinion drive mitigates ice and dust issues.
- Separate guide rails combined with rack and stairway.
- Pre-assembled with the tower sections.
- Battery operation, no cable connection.
- 200 kg lifting capacity.
